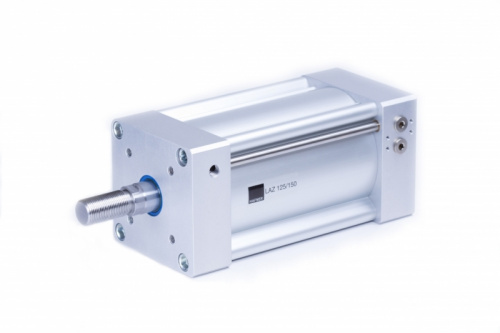

Double acting | magnetic piston | 320 mm piston diameter HAFNER LAZ
Арт. LAZ
Double acting | magnetic piston | 320 mm piston diameter HAFNER LAZ
Арт. LAZ
LAZ Series: Linear Actuators with NAMUR-Interface
Key features:
- Double acting
- Built-in cushioning rings
- Interface to solenoid valve according to VDI/VDE 3845 (NAMUR 1 - 1/4")
- Mounting pattern at cylinder head according to DIN 3358/ISO 5210 for direct mounting to knife gate valves. Other interfaces available on request.
- Fixing possibilities for proximity switch as a standard
Diameter:
Ø80 Ø100 Ø125 with profile tube
Ø160 Ø200 Ø250 Ø320 with tie rods
Stroke: 25-1000 mm (other non-standard strokes are available on request.).
Medium | Air
Working pressure | 1 ... 10 bar
Temperature range | -20°C ... +80°C
Below 0°C air has to be dried.
Body | Anodized aluminum
Heads | Anodized aluminum
Drive piston | Aluminum, PUR, Plastoferrit
Piston rod | Stainless steel
Seals | NBR
Air connection tube | Stainless steel
Rail for sensor (Ø160-Ø320) | Anodized aluminum
Tie rods | 1.4021
Key features:
- Double acting
- Built-in cushioning rings
- Interface to solenoid valve according to VDI/VDE 3845 (NAMUR 1 - 1/4")
- Mounting pattern at cylinder head according to DIN 3358/ISO 5210 for direct mounting to knife gate valves. Other interfaces available on request.
- Fixing possibilities for proximity switch as a standard
Diameter:
Ø80 Ø100 Ø125 with profile tube
Ø160 Ø200 Ø250 Ø320 with tie rods
Stroke: 25-1000 mm (other non-standard strokes are available on request.).
Medium | Air
Working pressure | 1 ... 10 bar
Temperature range | -20°C ... +80°C
Below 0°C air has to be dried.
Body | Anodized aluminum
Heads | Anodized aluminum
Drive piston | Aluminum, PUR, Plastoferrit
Piston rod | Stainless steel
Seals | NBR
Air connection tube | Stainless steel
Rail for sensor (Ø160-Ø320) | Anodized aluminum
Tie rods | 1.4021
